Product introduction

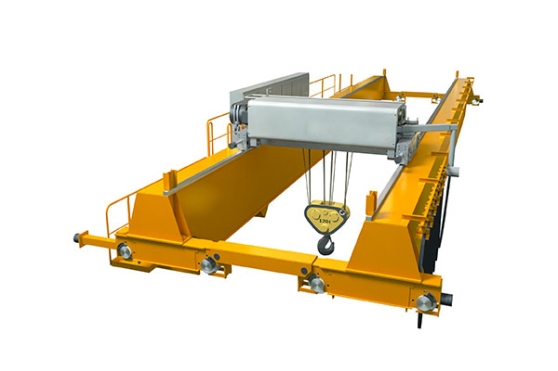

The crane is composed with Girder frame, Crane travel device, and the trolley with lifting and moving device. There are Pave the rail for the trolley move on the main girder. Assemble the moving table on the outside of the two main girder, one side is prepare for the assemble and maintenance the crane move device, another side is prepare for the assemble of the trolley conductor device. There are full field of view Cabin suspend under the main girder, there are joint control desk or single control box packed within the Cabin, assemble the sidelong ladder between the Cabin and moving table, The main girder joint with the two side end carriage which with the joint point in the middle.

Crane girders
The crane girders are of welded girder construction. This result in lower dead weights with a high degree of vertical and horizontal rigidity and smaller wheel loads being transmitted to the crane runway.

Painting
In factory before manufacturing :
After manufacturing (after welding)
Average thickness : about 100 microns

Electrical elements
The crane that we are offering is designed to meet the required functions and requirement stated in your specifications, as well as for the operating conditions.
The sub-assemblies used by are standardized equipment of renowned manufactures and have been approved for specific crane operation by our test laboratory. Their characteristics regarding impact,vibrations, wear and safety were examined. A continuous high quality standard is ensured by series production and standardized sub-assemblies.
The electrical equipment is accommodated in robust steel plate control cubicles, on the crane girder.
Type of enclosure IP 55
All movements can be switched off by actuating the emergency-off switch at the control station via a main contactor.
Power supply cable and control cable along the girder
A protective earth conductor is fitted as standard. A crane switch is provided.

Travel end switches
Long and cross travel limited by means of preliminary and final limit switches

Overload protection
In the event of overload, the hoist unit switches off and only the lowering motion is possible.

Henan Mine Crane Co.,LTD crane has top advanced overhead crane in the field of industrial overhead crane, All the overhead crane are design according to overhead crane standards. The single girder overhead crane (monorail overhead crane) and double girder overhead crane have a good design of overhead crane. overhead crane has many overhead crane components for different parts of overhead crane include overhead crane and hoist, overhead crane brake, overhead crane end trucks, overhead crane hoist, overhead crane trolley, overhead crane hooks, overhead crane kits, overhead crane pendent, overhead crane controls, overhead crane signals indicator, overhead crane rails, overhead crane rail stops and so on overhead crane equipment,

Henan Mine Crane Co.,LTD crane Service for installation.

Henan Mine Crane Co.,LTD crane could supply not only overhead crane but also the overhead crane solutions, firstly, we will supply overhead bridge crane design, overhead crane manual, overhead crane drawing, overhead crane wiring diagram, overhead crane electrical diagram and overhead crane safety video before or after delivery, our technician will do supervision the installation according to the document, of course, the customer can do installation by themselves according to their requirement.

After installation, our technician will indicate to do the load test according to the overhead crane load test procedure, then overhead crane operator training and overhead crane maintenance training, all the procedure will be made according to the overhead crane training videos and overhead crane training PowerPoint,

Henan Mine Crane Co.,LTD crane has a lot of honor for overhead crane certification for different overhead crane types

If you want to know more information about overhead crane, please find the overhead crane attachments, overhead crane pdf, overhead crane catalogue to get mover overhead crane specification and overhead crane regulations from the download center.

If you need bigger capacity. Please check the double girder overhead crane.
