Single Girder Overhead Crane

Capacity:1~20t
Span:7.5~31.5m
Lifting height: 6,9,12,18,24,30m
Ambient temperature:0.35/3.5,0.7/7,0.8/8

Overview

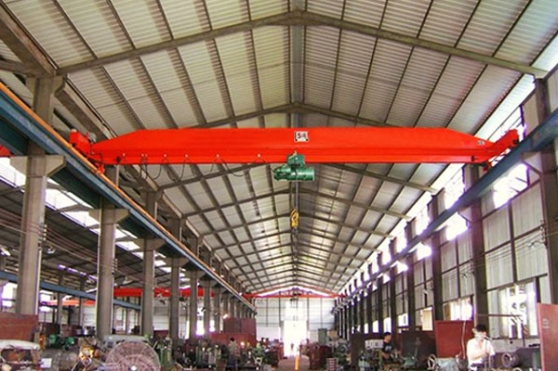

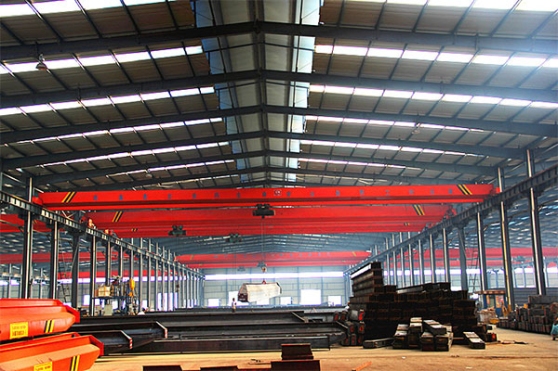

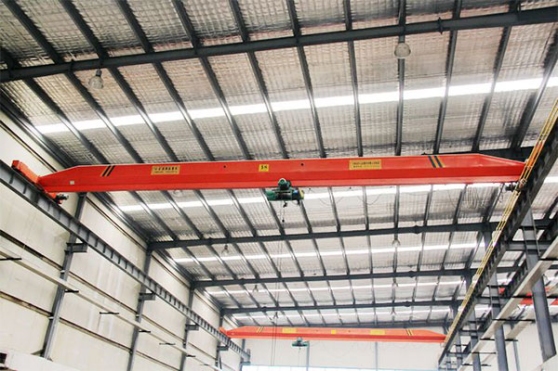

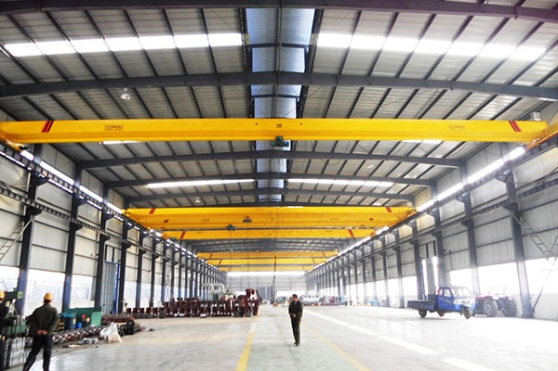

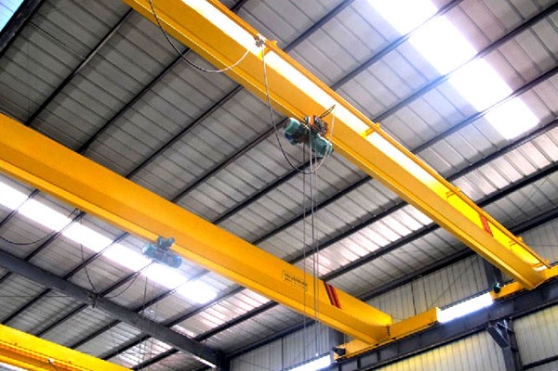

LDA model single girder overhead crane is a kind of light duty crane, with a capacity of 1 to 20 tons. The span is 7.5to 31.5 meters. Working grade is A3. Working temperature is -25°C to 40°C.

It is widely used in plants, warehouse, and material stocks to lift goods.

It is matched with electric hoist which is CD model or MD model.

It is prohibited to use the equipment in the combustible, explosive or corrosives environment.

Henan Mine Crane Co.,LTD crane has top advanced overhead crane in the field of industrial overhead crane, All the overhead crane are design according to overhead crane standards. The single girder overhead crane (monorail overhead crane) and double girder overhead crane have a good design of overhead crane. overhead crane has many overhead crane components for different parts of overhead crane include overhead crane and hoist, overhead crane brake, overhead crane end trucks, overhead crane hoist, overhead crane trolley, overhead crane hooks, overhead crane kits, overhead crane pendent, overhead crane controls, overhead crane signals indicator, overhead crane rails, overhead crane rail stops and so on overhead crane equipment,Henan Mine Crane Co.,LTD crane Service for installation.

Henan Mine Crane Co.,LTD crane could supply not only overhead crane but also the overhead crane solutions, firstly, we will supply overhead bridge crane design, overhead crane manual, overhead crane drawing, overhead crane wiring diagram, overhead crane electrical diagram and overhead crane safety video before or after delivery, our technician will do supervision the installation according to the document, of course, the customer can do installation by themselves according to their requirement.

After installation, our technician will indicate to do the load test according to the overhead crane load test procedure, then overhead crane operator training and overhead crane maintenance training, all the procedure will be made according to the overhead crane training videos and overhead crane training PowerPoint,Henan Mine Crane Co.,LTD crane has a lot of honor for overhead crane certification for different overhead crane types.

If you want to know more information about overhead crane, please find the overhead crane attachments, overhead crane pdf, overhead crane catalogue to get mover overhead crane specification and overhead crane regulations from the download center.The Single girder overhead crane include 1 ton overhead crane, 2 ton overhead crane, 3 ton overhead crane, 5 ton overhead crane, 10 ton overhead crane, 16 ton overhead crane, 20 ton overhead crane.

If you need bigger capacity. Please check the double girder overhead crane.

More keywords for overhead crane:

electric overhead crane, electric overhead traveling crane, overhead bridge crane, overhead crane bridge, overhead crane system, overhead gantry crane, overhead hoist crane, overhead traveling crane,

Features

Capacity	T	1
Span	m	7.5	11.5	14.5	17.5	19.5	22.5	25.5	28.5
Lifting height	m	6、 9、 12、18、 24、 30
Lifting speed	m/min	8 or 8/0.8
Hoist travelling speed	m/min	20
Crane travelling speed	m/min	20
Total weight	kg	1590	1960	2390	2850	3060	3550	4610	5660
Max. Wheel load	KN	8.7	9.9	11	12.2	12.8	14	16.7	19.4
Rail recommended	Model	24kg/m
Total motor power	kw	1.7
Main dimension (mm)	Span(m)	7.5	11.5	14.5	17.5	19.5	22.5	25.5	28.5
Rail top to crane top	H	490			530		580	660	745
Rail top to hook center	H4	910		955	970			990	1010
Crane base distance	W	1500	2000	2000	2500	2500	3000	3500	4000
Crane width	B	2000	2500	2500	3000	3000	3500	4000	4500
Hook left limitation	S1	796
Hook right limitation	S2	1274

Capacity	T	2
Span	m	7.5	11.5	14.5	17.5	19.5	22.5	25.5	28.5
Lifting height	m	6、 9、 12、18、 24、 30
Lifting speed	m/min	8 or 8/0.8
Hoist travelling speed	m/min	20
Crane travelling speed	m/min	20
Total weight	kg	1680	2140	2670	3480	3760	4400	5680	6850
Max. Wheel load	KN	13.6	15.2	16.7	18.8	19.5	21.2	24.4	27.4
Rail recommended	Model	24kg/m
Total motor power	kw	3.4
Main dimension (mm)	Span(m)	7.5	11.5	14.5	17.5	19.5	22.5	25.5	28.5
Rail top to crane top	H	490		580	660		785	820	875
Rail top to hook center	H4	1080	1125	1140	1160		1135	1200	1250
Crane base distance	W	1500	2000		2500		3000	3500	4000
Crane width	B	2000	2500		3000		3500	4000	4500
Hook left limitation	S1	796
Hook right limitation	S2	1274

Capacity	T	3
Span	m	7.5	11.5	14.5	17.5	19.5	22.5	25.5	28.5
Lifting height	m	6、 9、 12、18、 24、 30
Lifting speed	m/min	8 or 8/0.8
Hoist travelling speed	m/min	20 、30
Crane travelling speed	m/min	20					30
Total weight	kg	1860	2350	3120	3680	3970	5170	59500	8100
Max. Wheel load	KN	18.6	20.5	22.6	24.2	25	28.1	30.1	35.5
Rail recommended	Model	24kg/m
Total motor power	kw	4.9
Main dimension (mm)	Span(m)	7.5	11.5	14.5	17.5	19.5	22.5	25.5	28.5
Rail top to crane top	H	530	580	660	725		835	880	940
Rail top to hook center	H4	1270		1290	1305		1295	1330	1370
Crane base distance	W	1500	2000		2500		3000	3500	4000
Crane width	B	2000	2500		3000		3500	4000	4500
Hook left limitation	S1	819
Hook right limitation	S2	1291

Capacity	T	5
Span	m	7.5	11.5	14.5	17.5	19.5	22.5	25.5	28.5
Lifting height	m	6、 9、 12、18、 24、 30
Lifting speed	m/min	8 or 8/0.8
Hoist travelling speed	m/min	20 、30
Crane travelling speed	m/min	20					30
Total weight	kg	2220	2860	3430	4440	4790	5550	68000	8990
Max. Wheel load	KN	28.7	31.4	33.2	36	37	39.1	42.3	47.9
Rail recommended	Model	24kg/m
Total motor power	kw	8.3
Main dimension (mm)	Span(m)	7.5	11.5	14.5	17.5	19.5	22.5	25.5	28.5
Rail top to crane top	H	580	660	725	835		880	940	1020
Rail top to hook center	H4	1460	1460	1475	1465		1500	1540	1520
Crane base distance	W	1500	2000		2500		3000	3500	4000
Crane width	B	2000	2500		3000		3500	4000	4500
Hook left limitation	S1	842
Hook right limitation	S2	1310

Capacity	T	10
Span	m	7.5	11.5	14.5	17.5	19.5	22.5	25.5	28.5
Lifting height	m	6、 9、 12、18、 24、 30
Lifting speed	m/min	7 or 7/0.7
Hoist travelling speed	m/min	20 、30
Crane travelling speed	m/min	20					30
Total weight	kg	3060	3950	4640	5590	6010	7420	9220	14000
Max. Wheel load	KN	50.8	56.4	59.4	62.5	64	68	74.1	85.1
Rail recommended	Model	24kg/m
Total motor power	kw	13.8
Main dimension (mm)	Span(m)	7.5	11.5	14.5	17.5	19.5	22.5	25.5	28.5
Rail top to crane top	H	735	835	890	880		920	1065	1160
Rail top to hook center	H4	1815	1815	1840	1950		1970	1865	1890
Crane base distance	W	1500	2000		2500		3000	3500	4000
Crane width	B	2000	2500		3000		3500	4000	4700
Hook left limitation	S1	1293
Hook right limitation	S2	1893

Capacity	T	16
Span	m	7.5	11.5	14.5	17.5	19.5	22.5	25.5	28.5
Lifting height	m	6、 9、 12、18、 24、 30
Lifting speed	m/min	3.5 or 3.5/0.35
Hoist travelling speed	m/min	20 、30
Crane travelling speed	m/min	20					30
Total weight	kg	3390	4420	5760	7350	7940	9210	13170	15300
Max. Wheel load	KN	76.5	84.3	89.6	94.9	97	100.9	111.4	117.2
Rail recommended	Model	24kg/m
Total motor power	kw	13.8
Main dimension (mm)	Span(m)	7.5	11.5	14.5	17.5	19.5	22.5	25.5	28.5
Rail top to crane top	H	835	890	980	1065		1135	1200	1300
Rail top to hook center	H4	2445	2470	2520	2495		2545	2590	2600
Crane base distance	W	1500	2000		2500		3000	3500	4000
Crane width	B	2000	2500		3000		3500	4200	4700
Hook left limitation	S1	1293
Hook right limitation	S2	1893

Capacity	T	20
Span	m	7.5	11.5	14.5	17.5	19.5	22.5	25.5	28.5
Lifting height	m	6、 9、 12、18、 24、 30
Lifting speed	m/min	3.5 or 3.5/0.35
Hoist travelling speed	m/min	20 、30
Crane travelling speed	m/min	20					30
Total weight	kg	5270	6710	8550	10110	10850	12600	14280	14690
Max. Wheel load	KN	99	109.1	116.3	121.8	124.5	129.9	134.5	135.8
Rail recommended	Model	24kg/m
Total motor power	kw	19.3
Main dimension (mm)	Span(m)	7.5	11.5	14.5	17.5	19.5	22.5	25.5	28.5
Rail top to crane top	H	900	970	1050		1130	1200	1300
Rail top to hook center	H4	2400	2430	2490		2550	2590	2600
Crane base distance	W	2000	2000		2500		3000	3500
Crane width	B	2700			3200		3700	4200
Hook left limitation	S1	1394
Hook right limitation	S2	1933

LDA model single girder overhead crane is a kind of light duty crane, with a capacity of 1 to 20 tons. The span is 7.5to 31.5 meters. Working grade is A3. Working temperature is -25°C to 40°C.

It is widely used in plants, warehouse, and material stocks to lift goods.

It is matched with electric hoist which is CD model or MD model.

It is prohibited to use the equipment in the combustible, explosive or corrosives environment.

If you need bigger capacity. Please check the double girder overhead crane.

More keywords for overhead crane:

electric overhead crane, electric overhead traveling crane, overhead bridge crane, overhead crane bridge, overhead crane system, overhead gantry crane, overhead hoist crane, overhead traveling crane,

Capacity	T	1
Span	m	7.5	11.5	14.5	17.5	19.5	22.5	25.5	28.5
Lifting height	m	6、 9、 12、18、 24、 30
Lifting speed	m/min	8 or 8/0.8
Hoist travelling speed	m/min	20
Crane travelling speed	m/min	20
Total weight	kg	1590	1960	2390	2850	3060	3550	4610	5660
Max. Wheel load	KN	8.7	9.9	11	12.2	12.8	14	16.7	19.4
Rail recommended	Model	24kg/m
Total motor power	kw	1.7
Main dimension (mm)	Span(m)	7.5	11.5	14.5	17.5	19.5	22.5	25.5	28.5
Rail top to crane top	H	490			530		580	660	745
Rail top to hook center	H4	910		955	970			990	1010
Crane base distance	W	1500	2000	2000	2500	2500	3000	3500	4000
Crane width	B	2000	2500	2500	3000	3000	3500	4000	4500
Hook left limitation	S1	796
Hook right limitation	S2	1274

Capacity	T	2
Span	m	7.5	11.5	14.5	17.5	19.5	22.5	25.5	28.5
Lifting height	m	6、 9、 12、18、 24、 30
Lifting speed	m/min	8 or 8/0.8
Hoist travelling speed	m/min	20
Crane travelling speed	m/min	20
Total weight	kg	1680	2140	2670	3480	3760	4400	5680	6850
Max. Wheel load	KN	13.6	15.2	16.7	18.8	19.5	21.2	24.4	27.4
Rail recommended	Model	24kg/m
Total motor power	kw	3.4
Main dimension (mm)	Span(m)	7.5	11.5	14.5	17.5	19.5	22.5	25.5	28.5
Rail top to crane top	H	490		580	660		785	820	875
Rail top to hook center	H4	1080	1125	1140	1160		1135	1200	1250
Crane base distance	W	1500	2000		2500		3000	3500	4000
Crane width	B	2000	2500		3000		3500	4000	4500
Hook left limitation	S1	796
Hook right limitation	S2	1274

Capacity	T	3
Span	m	7.5	11.5	14.5	17.5	19.5	22.5	25.5	28.5
Lifting height	m	6、 9、 12、18、 24、 30
Lifting speed	m/min	8 or 8/0.8
Hoist travelling speed	m/min	20 、30
Crane travelling speed	m/min	20					30
Total weight	kg	1860	2350	3120	3680	3970	5170	59500	8100
Max. Wheel load	KN	18.6	20.5	22.6	24.2	25	28.1	30.1	35.5
Rail recommended	Model	24kg/m
Total motor power	kw	4.9
Main dimension (mm)	Span(m)	7.5	11.5	14.5	17.5	19.5	22.5	25.5	28.5
Rail top to crane top	H	530	580	660	725		835	880	940
Rail top to hook center	H4	1270		1290	1305		1295	1330	1370
Crane base distance	W	1500	2000		2500		3000	3500	4000
Crane width	B	2000	2500		3000		3500	4000	4500
Hook left limitation	S1	819
Hook right limitation	S2	1291

Capacity	T	5
Span	m	7.5	11.5	14.5	17.5	19.5	22.5	25.5	28.5
Lifting height	m	6、 9、 12、18、 24、 30
Lifting speed	m/min	8 or 8/0.8
Hoist travelling speed	m/min	20 、30
Crane travelling speed	m/min	20					30
Total weight	kg	2220	2860	3430	4440	4790	5550	68000	8990
Max. Wheel load	KN	28.7	31.4	33.2	36	37	39.1	42.3	47.9
Rail recommended	Model	24kg/m
Total motor power	kw	8.3
Main dimension (mm)	Span(m)	7.5	11.5	14.5	17.5	19.5	22.5	25.5	28.5
Rail top to crane top	H	580	660	725	835		880	940	1020
Rail top to hook center	H4	1460	1460	1475	1465		1500	1540	1520
Crane base distance	W	1500	2000		2500		3000	3500	4000
Crane width	B	2000	2500		3000		3500	4000	4500
Hook left limitation	S1	842
Hook right limitation	S2	1310

Capacity	T	10
Span	m	7.5	11.5	14.5	17.5	19.5	22.5	25.5	28.5
Lifting height	m	6、 9、 12、18、 24、 30
Lifting speed	m/min	7 or 7/0.7
Hoist travelling speed	m/min	20 、30
Crane travelling speed	m/min	20					30
Total weight	kg	3060	3950	4640	5590	6010	7420	9220	14000
Max. Wheel load	KN	50.8	56.4	59.4	62.5	64	68	74.1	85.1
Rail recommended	Model	24kg/m
Total motor power	kw	13.8
Main dimension (mm)	Span(m)	7.5	11.5	14.5	17.5	19.5	22.5	25.5	28.5
Rail top to crane top	H	735	835	890	880		920	1065	1160
Rail top to hook center	H4	1815	1815	1840	1950		1970	1865	1890
Crane base distance	W	1500	2000		2500		3000	3500	4000
Crane width	B	2000	2500		3000		3500	4000	4700
Hook left limitation	S1	1293
Hook right limitation	S2	1893

Capacity	T	16
Span	m	7.5	11.5	14.5	17.5	19.5	22.5	25.5	28.5
Lifting height	m	6、 9、 12、18、 24、 30
Lifting speed	m/min	3.5 or 3.5/0.35
Hoist travelling speed	m/min	20 、30
Crane travelling speed	m/min	20					30
Total weight	kg	3390	4420	5760	7350	7940	9210	13170	15300
Max. Wheel load	KN	76.5	84.3	89.6	94.9	97	100.9	111.4	117.2
Rail recommended	Model	24kg/m
Total motor power	kw	13.8
Main dimension (mm)	Span(m)	7.5	11.5	14.5	17.5	19.5	22.5	25.5	28.5
Rail top to crane top	H	835	890	980	1065		1135	1200	1300
Rail top to hook center	H4	2445	2470	2520	2495		2545	2590	2600
Crane base distance	W	1500	2000		2500		3000	3500	4000
Crane width	B	2000	2500		3000		3500	4200	4700
Hook left limitation	S1	1293
Hook right limitation	S2	1893

Capacity	T	20
Span	m	7.5	11.5	14.5	17.5	19.5	22.5	25.5	28.5
Lifting height	m	6、 9、 12、18、 24、 30
Lifting speed	m/min	3.5 or 3.5/0.35
Hoist travelling speed	m/min	20 、30
Crane travelling speed	m/min	20					30
Total weight	kg	5270	6710	8550	10110	10850	12600	14280	14690
Max. Wheel load	KN	99	109.1	116.3	121.8	124.5	129.9	134.5	135.8
Rail recommended	Model	24kg/m
Total motor power	kw	19.3
Main dimension (mm)	Span(m)	7.5	11.5	14.5	17.5	19.5	22.5	25.5	28.5
Rail top to crane top	H	900	970	1050		1130	1200	1300
Rail top to hook center	H4	2400	2430	2490		2550	2590	2600
Crane base distance	W	2000	2000		2500		3000	3500
Crane width	B	2700			3200		3700	4200
Hook left limitation	S1	1394
Hook right limitation	S2	1933
