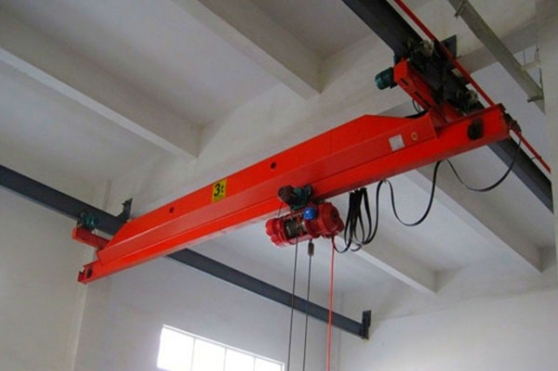

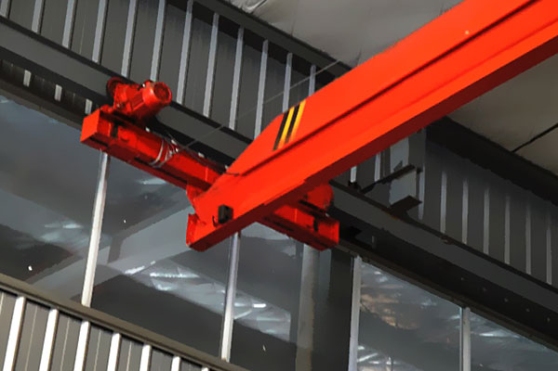

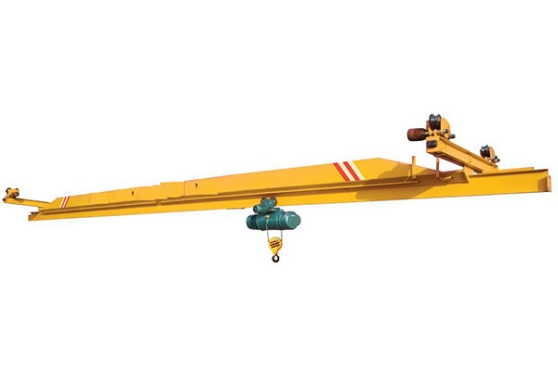

Underhung Single Girder Overhead Crane

Capacity:1~20t
Span:7.5~31.5m
Lifting height: 6,9,12,18,24,30m
Lifting speed: 0.35/3.5,0.7/7,0.8/8m/min or 3.5,7,8m/min

Overview

Monorails and underhung cranes with monorail hoist owns tight dimension, low building headroom, light dead weight and light wheel load. It is a light duty track traveling crane with trajectory.The standard capacity is 0.5T, 1T, 2T, 3T, 5T; the span is from 3m to16m. it adopts ground control and works at a temperature of -25--40 centigrade. It is prohibited to use the equipment at combustible,explosive or corrosive environment.

Under Running Single Girder Overhead Crane applies to works and storehouses where it is ≥100 mm height between the rail surface and the rafter of roof truss.

The trolley forms a set with electric hoist, The mechanism is nimble, with safe and reliable motion. It is capable of designing and making non-standard hoisting equipment.

Installation Service

Henan Mine Crane Co.,LTD crane could supply not only overhead crane but also the overhead crane solutions, firstly, we will supply overhead bridge crane design, overhead crane manual, overhead crane drawing, overhead crane wiring diagram, overhead crane electrical diagram and overhead crane safety video before or after delivery, our technician will do supervision the installation according to the document, of course, the customer can do installation by themselves according to their requirement.

After installation, our technician will indicate to do the load test according to the overhead crane load test procedure, then overhead crane operator training and overhead crane maintenance training, all the procedure will be made according to the overhead crane training videos and overhead crane training PowerPoint,

Henan Mine Crane Co,.LTD crane has a lot of honor for overhead crane certification for different overhead crane types

If you want to know more information about overhead crane, please find the overhead crane attachments, overhead crane pdf, overhead crane catalogue to get mover overhead crane specification and overhead crane regulations from the download center.

The Single girder overhead crane include 1 ton overhead crane, 2 ton overhead crane, 3 ton overhead crane, 5 ton overhead crane, 10 ton overhead crane, 16 ton overhead crane, 20 ton overhead crane.

If you need bigger capacity. Please check the double girder overhead crane.

Features

Capacity	T	0.5
Span	m	3.5	8.5	12.5	16.5	20			22.5
Lifting height	m	6/9/12/18/24/30
Lifting speed	m/min	8or (8/0.8）
Trolley travelling speed	m/min	20
Crane travelling speed	m/min	20
Total weight	kg	1060	1540	1876	1960	2745			2976
Max. Wheel load	KN	6.28	7.19	7.97	9.87	10.09			10.66
Rail recommended	Model	120a~145c
Total motor power	kw	1.8kw
Main dimension (mm)	Span(m)	3.5	8.5	12.5	16.5	20			22.5
Rail top to hook center	H4	830
Crane base distance	W	1000		1500	2000		2500	3000
Crane width	B	1500		2000	2500		3000	3500
Hook left limitation	S1	370
Hook right limitation	S2	223

Capacity	T	1
Span	m	3.5	8.5	12.5	16.5	20			22.5
Lifting height	m	6/9/12/18/24/30
Lifting speed	m/min	8or (8/0.8）
Trolley travelling speed	m/min	20
Crane travelling speed	m/min	20
Total weight	kg	1075	1555	1891	2309	3111			3383
Max. Wheel load	KN	9.52	10.19	10.91	11.91	13.87			14.53
Rail recommended	Model	120a~145c
Total motor power	kw	2.5kw
Main dimension (mm)	Span(m)	3.5	8.5	12.5	16.5	20			22.5
Rail top to hook center	H4	847
Crane base distance	W	1000		1500	2000		2500	3000
Crane width	B	1500		2000	2500		3000	3500
Hook left limitation	S1	310
Hook right limitation	S2	130

Capacity	T	2
Span	m	3.5	8.5	12.5	16.5	20			22.5
Lifting height	m	6/9/12/18/24/30
Lifting speed	m/min	8or (8/0.8）
Trolley travelling speed	m/min	20
Crane travelling speed	m/min	20
Total weight	kg	1162	1541	2184	2783	3585			3903
Max. Wheel load	KN	16.35	16.32	17.65	19.03	20.97			21.73
Rail recommended	Model	120a~145c
Total motor power	kw	4.2kw
Main dimension (mm)	Span(m)	3.5	8.5	12.5	16.5	20			22.5
Rail top to hook center	H4	1020
Crane base distance	W	1000		1500	2000		2500	3000
Crane width	B	1500		2000	2500		3000	3500
Hook left limitation	S1	290
Hook right limitation	S2	170

Capacity	T	3
Span	m	3.5	8.5	12.5	16.5	20			22.5
Lifting height	m	6/9/12/18/24/30
Lifting speed	m/min	8or (8/0.8）
Trolley travelling speed	m/min	20
Crane travelling speed	m/min	20
Total weight	kg	1292	1840	2379	3019	3704			4028
Max. Wheel load	KN	23.22	23.07	24.07	25.50	27.11			27.87
Rail recommended	Model	120a~145c
Total motor power	kw	5.7kw
Main dimension (mm)	Span(m)	3.5	8.5	12.5	16.5	20			22.5
Rail top to hook center	H4	1134
Crane base distance	W	1000		1500	2000		2500	3000
Crane width	B	1500		2000	2500		3000	3500
Hook left limitation	S1	290
Hook right limitation	S2	170

Capacity	T	5
Span	m	3.5	8.5	12.5	16.5	20			22.5
Lifting height	m	6/9/12/18/24/30
Lifting speed	m/min	8or (8/0.8）
Trolley travelling speed	m/min	20
Crane travelling speed	m/min	20
Total weight	kg	1599	2271	2996	3675	5056			5493
Max. Wheel load	KN	37.33	37.18	38.20	39.57	42.71			43.69
Rail recommended	Model	120a~145c
Total motor power	kw	9.1kw
Main dimension (mm)	Span(m)	3.5	8.5	12.5	16.5	20			22.5
Rail top to hook center	H4	1320
Crane base distance	W	1000		1500	2000		2500	3000
Crane width	B	1500		2000	2500		3000	3500
Hook left limitation	S1	360
Hook right limitation	S2	150

Capacity	T	10
Span	m	3.5	8.5	12.5	16.5	20			22.5
Lifting height	m	6/9/12/18/24/30
Lifting speed	m/min	7or (7/0.7）
Trolley travelling speed	m/min	20
Crane travelling speed	m/min	20
Total weight	kg	2372	3189	4170	5161	6975			7532
Max. Wheel load	KN	64.08	69.85	71.01	72.90	77.10			78.33
Rail recommended	Model	140b~163c
Total motor power	kw	15.2kw
Main dimension (mm)	Span(m)	3.5	8.5	12.5	16.5	20			22.5
Rail top to hook center	H4	1670
Crane base distance	W	1000		1500	2000		2500	3000
Crane width	B	1500		2000	2500		3000	3500
Hook left limitation	S1	500
Hook right limitation	S2	500

Under Running Single Girder Overhead Crane applies to works and storehouses where it is ≥100 mm height between the rail surface and the rafter of roof truss.

The trolley forms a set with electric hoist, The mechanism is nimble, with safe and reliable motion. It is capable of designing and making non-standard hoisting equipment.

Henan Mine Crane Co,.LTD crane has a lot of honor for overhead crane certification for different overhead crane types

The Single girder overhead crane include 1 ton overhead crane, 2 ton overhead crane, 3 ton overhead crane, 5 ton overhead crane, 10 ton overhead crane, 16 ton overhead crane, 20 ton overhead crane.

If you need bigger capacity. Please check the double girder overhead crane.

Capacity	T	0.5
Span	m	3.5	8.5	12.5	16.5	20			22.5
Lifting height	m	6/9/12/18/24/30
Lifting speed	m/min	8or (8/0.8）
Trolley travelling speed	m/min	20
Crane travelling speed	m/min	20
Total weight	kg	1060	1540	1876	1960	2745			2976
Max. Wheel load	KN	6.28	7.19	7.97	9.87	10.09			10.66
Rail recommended	Model	120a~145c
Total motor power	kw	1.8kw
Main dimension (mm)	Span(m)	3.5	8.5	12.5	16.5	20			22.5
Rail top to hook center	H4	830
Crane base distance	W	1000		1500	2000		2500	3000
Crane width	B	1500		2000	2500		3000	3500
Hook left limitation	S1	370
Hook right limitation	S2	223

Capacity	T	1
Span	m	3.5	8.5	12.5	16.5	20			22.5
Lifting height	m	6/9/12/18/24/30
Lifting speed	m/min	8or (8/0.8）
Trolley travelling speed	m/min	20
Crane travelling speed	m/min	20
Total weight	kg	1075	1555	1891	2309	3111			3383
Max. Wheel load	KN	9.52	10.19	10.91	11.91	13.87			14.53
Rail recommended	Model	120a~145c
Total motor power	kw	2.5kw
Main dimension (mm)	Span(m)	3.5	8.5	12.5	16.5	20			22.5
Rail top to hook center	H4	847
Crane base distance	W	1000		1500	2000		2500	3000
Crane width	B	1500		2000	2500		3000	3500
Hook left limitation	S1	310
Hook right limitation	S2	130

Capacity	T	2
Span	m	3.5	8.5	12.5	16.5	20			22.5
Lifting height	m	6/9/12/18/24/30
Lifting speed	m/min	8or (8/0.8）
Trolley travelling speed	m/min	20
Crane travelling speed	m/min	20
Total weight	kg	1162	1541	2184	2783	3585			3903
Max. Wheel load	KN	16.35	16.32	17.65	19.03	20.97			21.73
Rail recommended	Model	120a~145c
Total motor power	kw	4.2kw
Main dimension (mm)	Span(m)	3.5	8.5	12.5	16.5	20			22.5
Rail top to hook center	H4	1020
Crane base distance	W	1000		1500	2000		2500	3000
Crane width	B	1500		2000	2500		3000	3500
Hook left limitation	S1	290
Hook right limitation	S2	170

Capacity	T	3
Span	m	3.5	8.5	12.5	16.5	20			22.5
Lifting height	m	6/9/12/18/24/30
Lifting speed	m/min	8or (8/0.8）
Trolley travelling speed	m/min	20
Crane travelling speed	m/min	20
Total weight	kg	1292	1840	2379	3019	3704			4028
Max. Wheel load	KN	23.22	23.07	24.07	25.50	27.11			27.87
Rail recommended	Model	120a~145c
Total motor power	kw	5.7kw
Main dimension (mm)	Span(m)	3.5	8.5	12.5	16.5	20			22.5
Rail top to hook center	H4	1134
Crane base distance	W	1000		1500	2000		2500	3000
Crane width	B	1500		2000	2500		3000	3500
Hook left limitation	S1	290
Hook right limitation	S2	170

Capacity	T	5
Span	m	3.5	8.5	12.5	16.5	20			22.5
Lifting height	m	6/9/12/18/24/30
Lifting speed	m/min	8or (8/0.8）
Trolley travelling speed	m/min	20
Crane travelling speed	m/min	20
Total weight	kg	1599	2271	2996	3675	5056			5493
Max. Wheel load	KN	37.33	37.18	38.20	39.57	42.71			43.69
Rail recommended	Model	120a~145c
Total motor power	kw	9.1kw
Main dimension (mm)	Span(m)	3.5	8.5	12.5	16.5	20			22.5
Rail top to hook center	H4	1320
Crane base distance	W	1000		1500	2000		2500	3000
Crane width	B	1500		2000	2500		3000	3500
Hook left limitation	S1	360
Hook right limitation	S2	150

Capacity	T	10
Span	m	3.5	8.5	12.5	16.5	20			22.5
Lifting height	m	6/9/12/18/24/30
Lifting speed	m/min	7or (7/0.7）
Trolley travelling speed	m/min	20
Crane travelling speed	m/min	20
Total weight	kg	2372	3189	4170	5161	6975			7532
Max. Wheel load	KN	64.08	69.85	71.01	72.90	77.10			78.33
Rail recommended	Model	140b~163c
Total motor power	kw	15.2kw
Main dimension (mm)	Span(m)	3.5	8.5	12.5	16.5	20			22.5
Rail top to hook center	H4	1670
Crane base distance	W	1000		1500	2000		2500	3000
Crane width	B	1500		2000	2500		3000	3500
Hook left limitation	S1	500
Hook right limitation	S2	500
