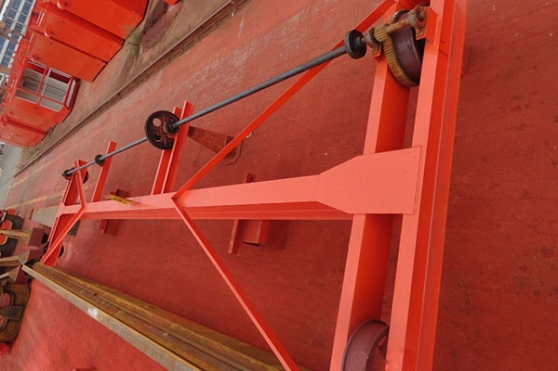

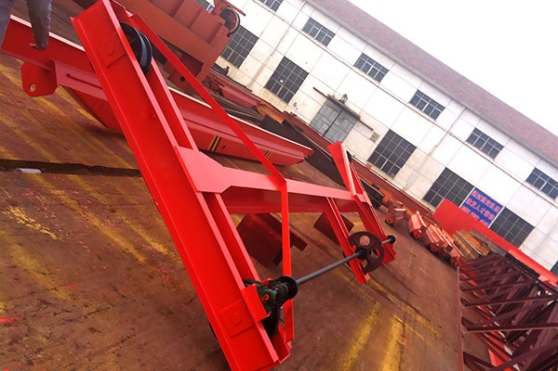

Manually Operated Single Girder Overhead Crane

Capacity:1~20t
Span:7.5~31.5m
Lifting height: 6,9,12,18,24,30m
Ambient temperature:0.35/3.5,0.7/7,0.8/8

Overview

Manually Operated Single Girder Overhead Crane is a kind of light duty crane, with a capacity of 1 to 20 tons. The span is 7.5to 31.5 meters. Working grade is A3. Working temperature is -20°C to 40°C.

It is widely used in plants, warehouse, and material stocks to lift goods.

It is matched with electric hoist which is CD model or MD model.

It is prohibited to use the equipment in the combustible, explosive or corrosives environment.

Installation Service

Henan Mine Crane Co.,LTD crane has top advanced overhead crane in the field of industrial overhead crane, all the overhead crane are designed according to overhead crane standards. The single girder overhead crane (monorail overhead crane) and double girder overhead crane have a good design of overhead crane. overhead crane has many overhead crane components for different parts of overhead crane include overhead crane and hoist, overhead crane brake, overhead crane end trucks, overhead crane hoist, overhead crane trolley, overhead crane hooks, overhead crane kits, overhead crane pendent, overhead crane controls, overhead crane signals indicator, overhead crane rails, overhead crane rail stops and so on overhead crane equipment,

Henan Mine Crane Co.,LTD crane Service for installation.

Henan Mine Crane Co.,LTD crane could supply not only overhead crane but also the overhead crane solutions, firstly, we will supply overhead bridge crane design, overhead crane manual, overhead crane drawing, overhead crane wiring diagram, overhead crane electrical diagram and overhead crane safety video before or after delivery, our technician will do supervision the installation according to the document, of course, the customer can do installation by themselves according to their requirement.

After installation, our technician will indicate to do the load test according to the overhead crane load test procedure, then overhead crane operator training and overhead crane maintenance training, all the procedure will be made according to the overhead crane training videos and overhead crane training PowerPoint,

Henan Mine Crane Co.,LTD crane has a lot of honor for overhead crane certification for different overhead crane types

If you want to know more information about overhead crane, please find the overhead crane attachments, overhead crane pdf, overhead crane catalogue to get mover overhead crane specification and overhead crane regulations from the download center.

The Single girder overhead crane include 1 ton overhead crane, 2 ton overhead crane, 3 ton overhead crane, 5 ton overhead crane, 10 ton overhead crane, 16 ton overhead crane, 20 ton overhead crane.

If you need bigger capacity. Please check the double girder overhead crane.

More keywords for overhead crane:

electric overhead crane, electric overhead traveling crane, overhead bridge crane, overhead crane bridge, overhead crane system, overhead gantry crane, overhead hoist crane, overhead traveling crane,

Features

Capacity	T	1
Span	m	5	9	12	14
Lifting height	m	3-10
Trolley travelling speed	m/min	5.3
Crane travelling speed	m/min	5.0
Total Weight	Kg	650	850	1090	1310
Max. Wheel load	KN	0.65	0.73	0.81	0.86
Main dimension (mm)	Span(m)	5	9	12	14
Rail top to crane top	H	520
Rail top to hook center	H4	550	580	610	650
Crane base distance	W	1200		1600
Crane width	B	1800		2200
Hook left limitation	S1	360	380	395	420
Hook right limitation	S2	360	380	395	420

	T	2
Span	m	5	9	12	14
Lifting height	m	3-10
Trolley travelling speed	m/min	5.9
Crane travelling speed	m/min	5.0
Total Weight	Kg	700	870	1320	1550
Max. Wheel load	KN	1.13	1.19	1.29	1.40
Main dimension (mm)	Span(m)	5	9	12	14
Rail top to crane top	H	520
Rail top to hook center	H4	720	750	790	870
Crane base distance	W	1200		1600
Crane width	B	1800		2200
Hook left limitation	S1	400	415	440	490
Hook right limitation	S2	400	415	440	490

Capacity	T	3
Span	m	5	9	12	14
Lifting height	m	3-10
Trolley travelling speed	m/min	4.7
Crane travelling speed	m/min	5.0
Total Weight	Kg	810	1200	1460	1800
Max. Wheel load	KN	1.61	1.79	1.87	1.97
Main dimension (mm)	Span(m)	5	9	12	14
Rail top to crane top	H	520
Rail top to hook center	H4	900	940	980	1030
Crane base distance	W	1200		1600
Crane width	B	1800		2200
Hook left limitation	S1	460	485	510	540
Hook right limitation	S2	460	485	510	540

Capacity	T	5
Span	m	5	9	12	14
Lifting height	m	3-10
Trolley travelling speed	m/min	4.7
Crane travelling speed	m/min	5.0
Total Weight	Kg	960	1360	1730	2210
Max. Wheel load	KN	2.5	2.75	2.86	3.01
Main dimension (mm)	Span(m)	5	9	12	14
Rail top to crane top	H	600
Rail top to hook center	H4	1210	1250	1300	1360
Crane base distance	W	1200		1600
Crane width	B	1800		2200
Hook left limitation	S1	520	560	585	625
Hook right limitation	S2	520	560	585	625

Capacity	T	10
Span	m	5	9	12	14
Lifting height	m	3-10
Trolley travelling speed	m/min	4.2
Crane travelling speed	m/min	5.0
Total Weight	Kg	1420	1870	2250	2830
Max. Wheel load	KN	4.89	5.29	5.44	5.65
Main dimension (mm)	Span(m)	5	9	12	14
Rail top to crane top	H	720
Rail top to hook center	H4	1390	1440	1490	1550
Crane base distance	W	1800
Crane width	B	2600
Hook left limitation	S1	555	585	615	650
Hook right limitation	S2	555	585	615	650

It is widely used in plants, warehouse, and material stocks to lift goods.

It is matched with electric hoist which is CD model or MD model.

It is prohibited to use the equipment in the combustible, explosive or corrosives environment.

Henan Mine Crane Co.,LTD crane Service for installation.

Henan Mine Crane Co.,LTD crane has a lot of honor for overhead crane certification for different overhead crane types

The Single girder overhead crane include 1 ton overhead crane, 2 ton overhead crane, 3 ton overhead crane, 5 ton overhead crane, 10 ton overhead crane, 16 ton overhead crane, 20 ton overhead crane.

If you need bigger capacity. Please check the double girder overhead crane.

More keywords for overhead crane:

electric overhead crane, electric overhead traveling crane, overhead bridge crane, overhead crane bridge, overhead crane system, overhead gantry crane, overhead hoist crane, overhead traveling crane,

Capacity	T	1
Span	m	5	9	12	14
Lifting height	m	3-10
Trolley travelling speed	m/min	5.3
Crane travelling speed	m/min	5.0
Total Weight	Kg	650	850	1090	1310
Max. Wheel load	KN	0.65	0.73	0.81	0.86
Main dimension (mm)	Span(m)	5	9	12	14
Rail top to crane top	H	520
Rail top to hook center	H4	550	580	610	650
Crane base distance	W	1200		1600
Crane width	B	1800		2200
Hook left limitation	S1	360	380	395	420
Hook right limitation	S2	360	380	395	420

	T	2
Span	m	5	9	12	14
Lifting height	m	3-10
Trolley travelling speed	m/min	5.9
Crane travelling speed	m/min	5.0
Total Weight	Kg	700	870	1320	1550
Max. Wheel load	KN	1.13	1.19	1.29	1.40
Main dimension (mm)	Span(m)	5	9	12	14
Rail top to crane top	H	520
Rail top to hook center	H4	720	750	790	870
Crane base distance	W	1200		1600
Crane width	B	1800		2200
Hook left limitation	S1	400	415	440	490
Hook right limitation	S2	400	415	440	490

Capacity	T	3
Span	m	5	9	12	14
Lifting height	m	3-10
Trolley travelling speed	m/min	4.7
Crane travelling speed	m/min	5.0
Total Weight	Kg	810	1200	1460	1800
Max. Wheel load	KN	1.61	1.79	1.87	1.97
Main dimension (mm)	Span(m)	5	9	12	14
Rail top to crane top	H	520
Rail top to hook center	H4	900	940	980	1030
Crane base distance	W	1200		1600
Crane width	B	1800		2200
Hook left limitation	S1	460	485	510	540
Hook right limitation	S2	460	485	510	540

Capacity	T	5
Span	m	5	9	12	14
Lifting height	m	3-10
Trolley travelling speed	m/min	4.7
Crane travelling speed	m/min	5.0
Total Weight	Kg	960	1360	1730	2210
Max. Wheel load	KN	2.5	2.75	2.86	3.01
Main dimension (mm)	Span(m)	5	9	12	14
Rail top to crane top	H	600
Rail top to hook center	H4	1210	1250	1300	1360
Crane base distance	W	1200		1600
Crane width	B	1800		2200
Hook left limitation	S1	520	560	585	625
Hook right limitation	S2	520	560	585	625

Capacity	T	10
Span	m	5	9	12	14
Lifting height	m	3-10
Trolley travelling speed	m/min	4.2
Crane travelling speed	m/min	5.0
Total Weight	Kg	1420	1870	2250	2830
Max. Wheel load	KN	4.89	5.29	5.44	5.65
Main dimension (mm)	Span(m)	5	9	12	14
Rail top to crane top	H	720
Rail top to hook center	H4	1390	1440	1490	1550
Crane base distance	W	1800
Crane width	B	2600
Hook left limitation	S1	555	585	615	650
Hook right limitation	S2	555	585	615	650
