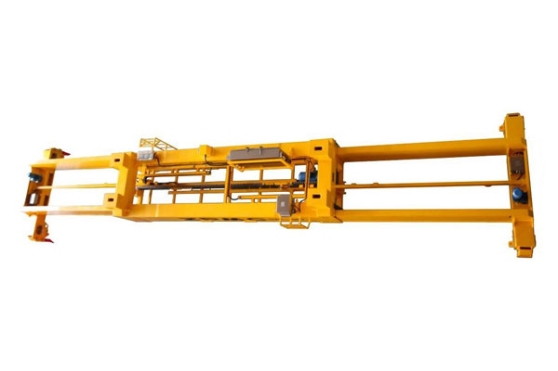

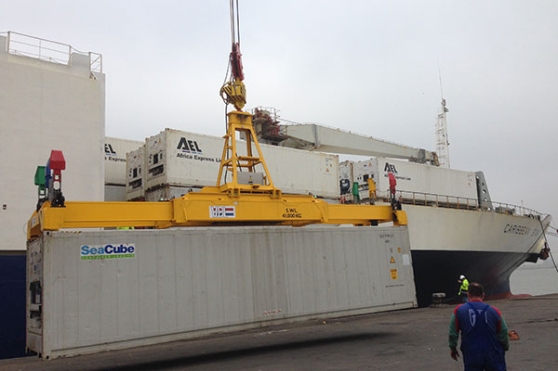

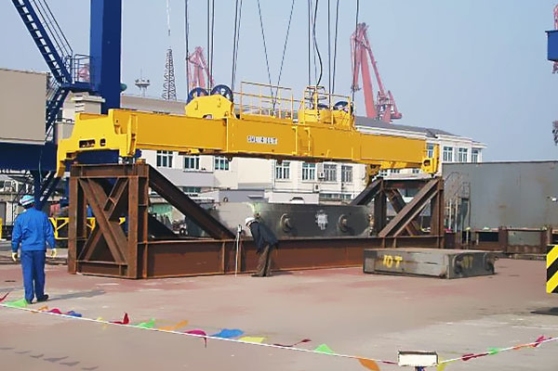

Electric Adjustable Spreader
- Model Number: MGU
- Max. Lifting Load: 60 ton
- Application: Port
- Span: 40m
Application: Port Rated Loading Capacity: 36 ton Rated Lifting Moment: 360KN
Max. Lifting Load: 60 ton Max. Lifting Height: 35m Span: 40m
Model Number: MGU Control: Cabin or remote Industry working voltage: As your need
Painting colour: According to your demand Work Duty: A5~A7
|
Parameter |
Values |
|
|
Useful lifting capacity, tn |
36/40/50 ton |
|
|
Mechanism speed, m/s (m/min) |
lifting speed |
0,17 (10) |
|
carrier travelling speed |
0,67 (40) |
|
|
crane travelling |
1,0 (60) |
|
|
Spread bar rotating speed, rpm |
1 |
|
|
Spread bar rotating angle, grad |
±180 |
|
|
Deceleration/acceleration time to nominal speed values, s |
lifting |
2…3 |
|
carrier travelling |
5…6 |
|
|
crane travelling |
10…12 |
|
|
spread bar rotating |
4…5 |
|
|
Speed adjustment range in % from the nominal one |
lifting |
2...100 |
|
carrier travelling |
5...100 |
|
|
crane travelling |
5...100 |
|
|
spread bar rotating |
5...100 |
|
|
Loading mode according to ISO 4301-1:1986 (load distribution factor) |
Q3 (Kp=0,5) |
|
|
Utilization class according to ISO 4301-1:1986 (maximum number of cycles) |
U5 (5 *105) |
|
|
Crane classification type in general according ISO 4301-1:1986 |
A6 |
|
|
Total running time of the mechanism according to ISO 4301-1:1986 |
lifting |
T6 (12500 machine hours) |
|
carrier travelling |
T6 (12500 machine hours) |
|
|
crane travelling |
T5 (6300 machine hours) |
|
|
spread bar rotating |
T5 (6300 machine hours) |
|
|
Loading mode according to ISO 4301:1-1986 |
lifting |
L3 |
|
carrier travelling |
L3 |
|
|
crane travelling |
L3 |
|
|
spread bar rotating |
L3 |
|
